Material
non-woven cotton paper adhesive with a thickness of about 0.15mm
- Floor Navigation
- Panel Material
- Adhesive Instructions
- Process Display

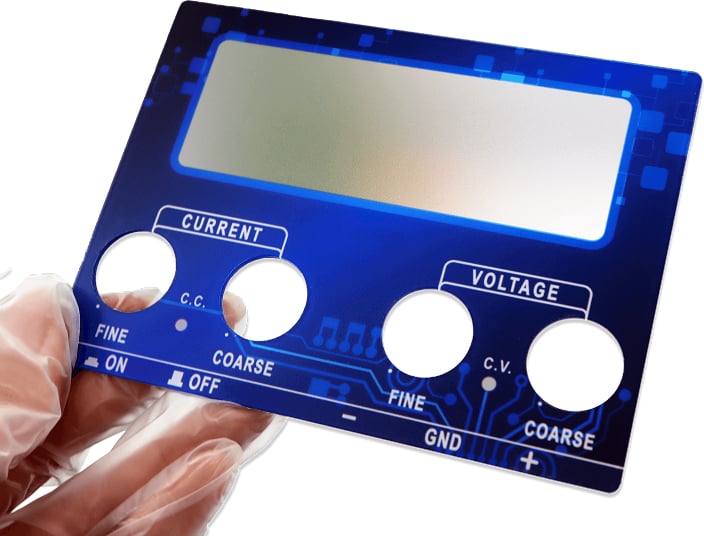

Acrylic Front Panel
"Acrylic" (PMMA) is a polyacrylate material, akin to treated plexiglass. It offers transparency, stability, weather resistance, aesthetics and easy coloring/processing. With 92% light transmittance and half the weight of glass, it's shatter-resistant (12-18x glass), strong (10x+ glass), weatherproof, electrical insulation, and chemically stable. A thickness of 0.8mm acrylic front panel is flexible and can be bent by hand.
Please Order Now
PET Front Panel
PET excels in drug, acid & alkali resistance, insulation, heat & wear resistance, strong toughness, and dimensional stability. Ideal for high-demand instruments and appliance front panels as it outperforms PC front panels in button longevity. As a premium substrate for film switches & circuits, PET front panels with light transmission, shading, water-proofing, and dust-proofing. Widely applied in appliances, communications, instrumentation, industrial control, etc.
Please Order Now

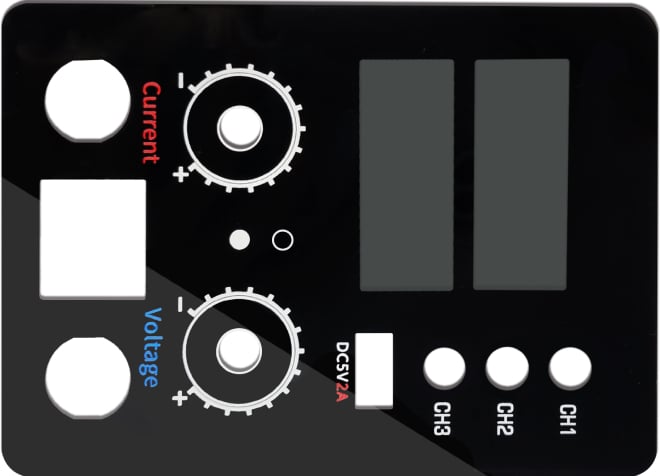

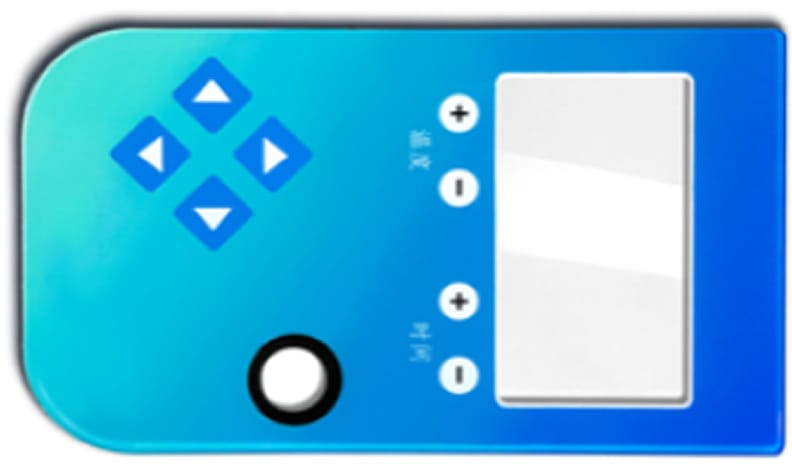

Front Panel Material
Transparent Acrylic Front Panel
The transparent acrylic panel material turns colorful upon ink printing and can cater to diverse light transmission needs, ranging from fully transparent to semi-transparent to fully opaque. Now LCSC supports the transparent acrylic front panel thicknesses are 0.5mm, 0.8mm, 1mm, 1.5mm, 2mm, 2.5mm, 2.8mm, 4mm, and 6mm.
Black Semi-transparent Acrylic Front Panel
The raw material is naturally semi-transparent, with a light transmittance of about 15%. Without light, it appears black, yet when illuminated, it allows light to pass through.

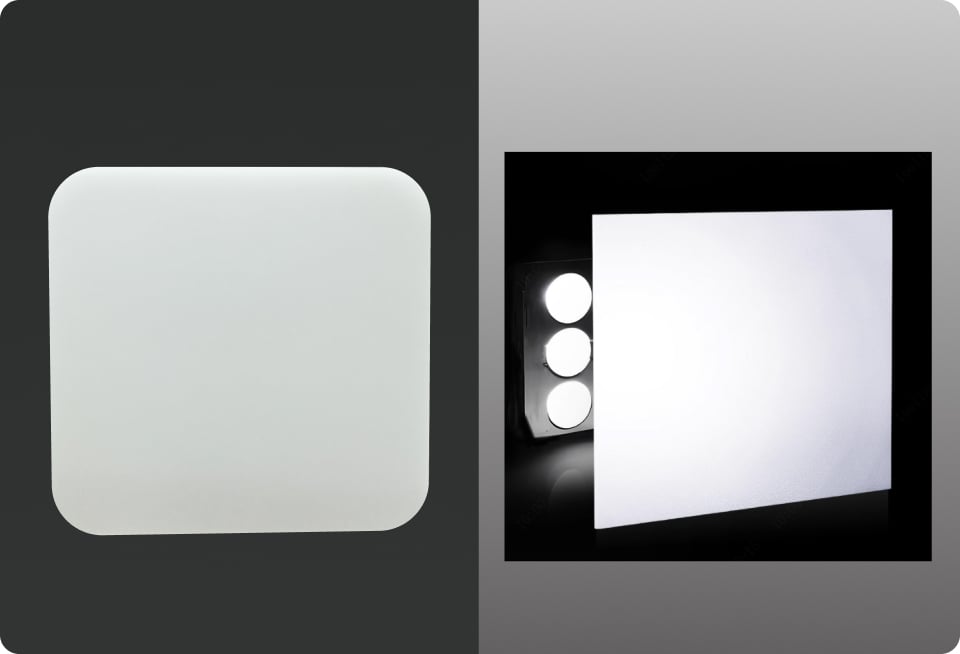

Frosted Acrylic

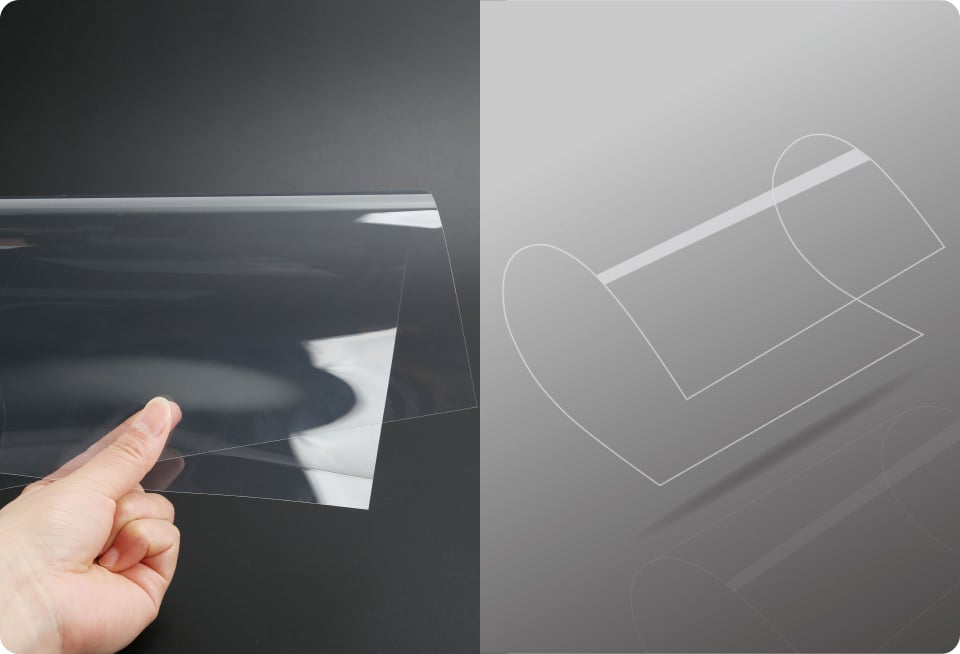

Glossy PET

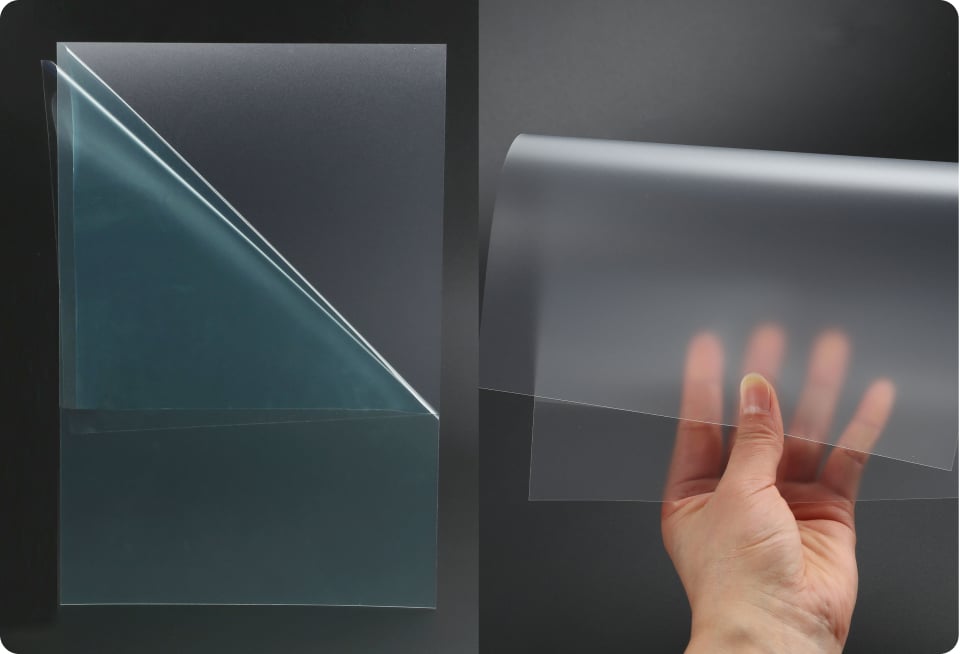

Frosted PET
Panels Adhesive Introduction
1. Default adhesive applies to the back. For the front application, specify during the order or contact [email protected].
2. Double-sided adhesive requires two pieces - one for the front and one for the back of the front panel.

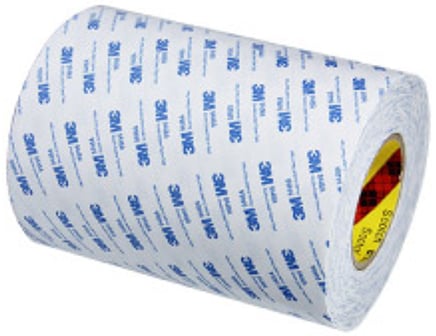

3M9448A
Color
white translucent
Temperature Resistance
70℃(long-term)~150℃(short-term)
Peel Strength
14N/10mm
Feature
It's a universal double-sided adhesive, boasting durability, superior temperature resistance, and robust adhesion, ideal for conventional front panels. Note: Repeated pasting is discouraged for optimal longevity.

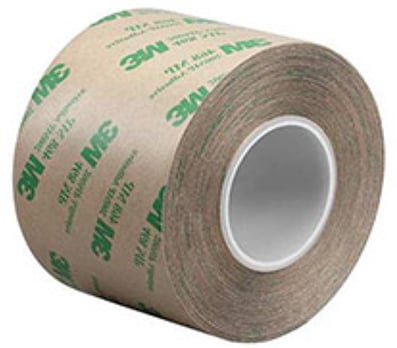

3M468MP
Material
pure adhesive film without substrate with a thickness of about 0.13mm
Color
transparent
Temperature Resistance
149℃ (long term) ~ 204℃ (short term), (minimum temperature is-30℃)
Peel Strength
8.5N/10mm
Feature
Anti-slip, waterproof, easy to process, temperature-resistant, and features strong adhesion for a secure bond. Release paper is waterproof kraft with polymer coating, resisting wrinkles in humidity and temperature variations. Note: Repeated pasting is not advised.

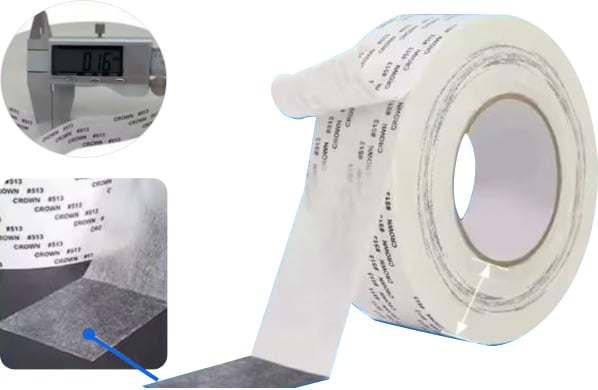

Royal#513(China Brand)
Material
High-dialysis cotton paper substrate, with a thickness of 0.16mm
Color
white translucent
Temperature Resistance
80℃(long-term)~100℃(short-term)
Peel Strength
11.5N/10mm
Feature
Excellent dimensional, thermal, chemical stability, and moisture resistance. Good anti-rebound & anti-warping properties. Applied for wood, metal, glass, paper, paintings, plastics, and textiles; ideal for nameplates, membrane switches, etc.
Process Display
Strong Shading Effect
Compared to normal shading, the front panels add a light-shielding underlayer, which can prevent light sources to the surrounding areas.
Note: Neither normal shading nor enhanced shading will affect transparent and translucent windows.
Actual Case of Strong Shading Effect
LEDs or strong lights under the front panels may cause glare with normal shading. Applying a stronger shading layer significantly reduces glare.
Bulged Button
1.Bulged buttons on PET front panels are made by a hydraulic press to bulge the button area on the film layer.
2.Enhancing recognition speed, offering a stronger tactile feeling on front panels for users, and accurately indicating the range of the keys.
3.The basic shapes include spherical bulges, elliptical bulges, rounded rectangular bulges, etc.
4.The height range is within 0.3~0.6mm, typically at 0.45mm.
Black Semi-transparent
Black translucent acrylic front panel material blends with a screen in the dark but reveals under light. Adding a black underlayer to non-display areas can enhance a visual appeal.
Translucent Colors
LCSC supports translucent colors in the front panels. Customers must mark CMYK color & text ("red translucent") in drawings.
Note: Use "red translucent" instead of "red transparent" to avoid confusion.
Transparent Window
A transparent window can make users see clearly what it is underneath the front panel.
Drilling and Contour Cutting
LCSC offers drilling & contour cutting. Laser-based, we don't support counterbores, steps, or chamfers currently.
Support Multiple Colors and Gradients
LCSC offers diverse colors & gradients for the front panels, with no additional cost for variety or quantity.
